Вальцовки серии 1200L

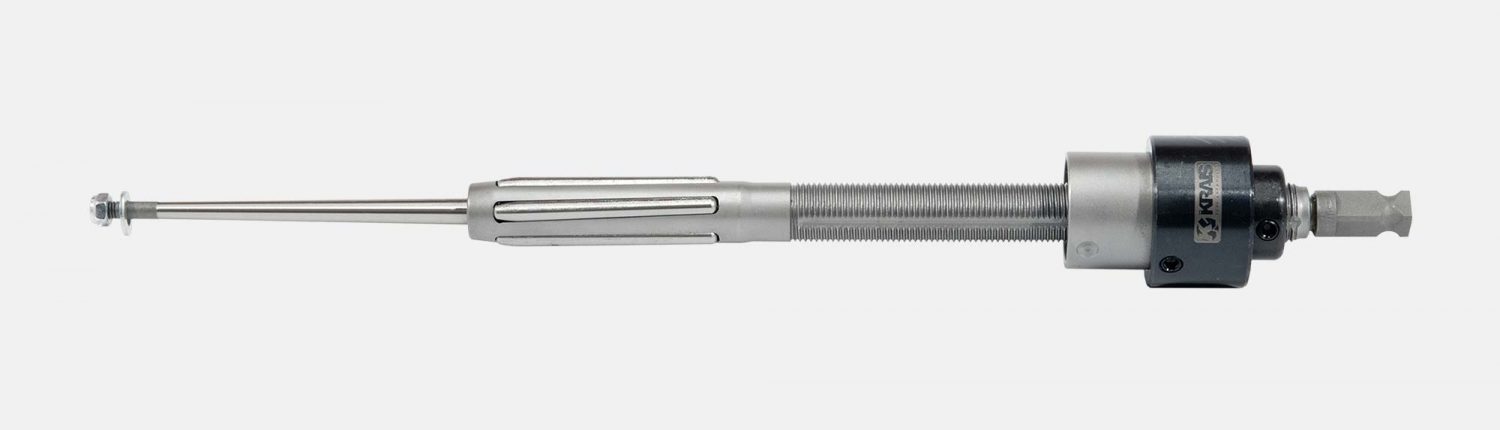

KRAIS Tube Expanders

Sheet Range: 1-1/2″ to 6-3/4″ (38,1 mm – 171,4 mm)

KRAIS Tube Expanders

Expanders with 1-1/2” (38.1 mm) long rolls will accommodate tube thicknesses up to:

STD. REACH 1/2” to 5-1/4” (12.7 mm to 152,4 mm)
“A” REACH 1/2” to 7-1/4” (12.7 mm to 203,1 mm)
“C” REACH 1/2” to 11-1/4” (12.7 mm to 304,6 mm)

Expanders with 2-1/4” (57.1 mm) long rolls will accommodate tube thicknesses up to:

STD. REACH 1-1/4” to 6” (31.7 mm to 171,4 mm)
“A” REACH 1-1/4” to 8” (31.7 mm to 222,1 mm)
“C” REACH 1-1/4” to 12” (31.7 mm to 323,6 mm)

Some diameters available up to 5 m length (16 feet).

Parameters

Tube OD Tube Gauge Expansion range Wall thickness Mandrel Reccommanded Drive
[inch] [mm] 3” to 6-3/4”
(76 to 171,4 mm)		 Electric (with digital controler) Pneumatic
[inch] [mm] [bwg] [inch] [mm] min max min max Tool No. Roll No. No. Square TES3000 TESMini2
3/4 19,05 13 0,10 2,41 0,55 0,61 13,97 15,40 1222-L R-8-L M-58 3/8 G1450 ES2 K50-400
3/4 19,05 14 0,08 2,11 0,57 0,63 14,58 16,00 1224-L R-9-L M-58 3/8 G1450 ES2 K50-400
3/4 19,05 15 0,07 1,83 0,59 0,65 15,10 16,50 1226-L R-10-L M-58 3/8 G1450 ES2 K50-600
3/4 19,05 16 0,07 1,65 0,61 0,67 15,40 17,10 1228-L R-10-L M-59 3/8 G1450 ES2 K50-600
3/4 19,05 17 0,06 1,47 0,62 0,69 15,75 17,40 1230-L R-11-L M-59 3/8 G1000 DU0 K60-900
3/4 19,05 18 0,05 1,25 0,62 0,69 15,75 17,40 1230-L R-11-L M-59 3/8 G1000 DU0 K60-900
3/4 19,05 19 0,04 1,07 0,64 0,71 16,35 18,00 1232-L R-12-L M-59 3/8 G1000 DU0 K60-900
3/4 19,05 20 0,04 0,89 0,64 0,71 16,35 18,00 1232-L R-12-L M-59 3/8 G1000 DU0 K60-900
3/4 19,05 21 0,03 0,81 0,67 0,74 17,00 18,80 1234-L R-13-L M-60 3/8 G1000 DU0 K60-900
3/4 19,05 22 0,03 0,71 0,67 0,74 17,00 18,80 1234-L R-13-L M-60 3/8 G1000 DU0 K60-900
7/8 22,23 10 0,13 3,40 0,59 0,65 15,10 16,50 1226-L R-10-L M-58 3/8 G1000 ES2 K50-400
7/8 22,23 11 0,12 3,05 0,62 0,69 15,75 17,40 1230-L R-11-L M-59 3/8 G1000 ES2 K50-400
7/8 22,23 12 0,11 2,77 0,64 0,71 16,35 18,00 1232-L R-12-L M-59 3/8 G1000 ES2 K50-400
7/8 22,23 13 0,10 2,41 0,67 0,74 16,90 18,70 1234-L R-13-L M-60 3/8 G1000 ES2 K50-600
7/8 22,23 14 0,08 2,11 0,69 0,76 17,45 19,40 1236-L R-14-L M-61 3/8 G1000 ES2 K50-600
7/8 22,23 15 0,07 1,83 0,71 0,79 18,10 20,10 1238-L R-15-L M-61 3/8 G1000 ES2 K50-600
7/8 22,23 16 0,07 1,65 0,73 0,81 18,50 20,50 1240-L R-15-L M-62 3/8 G1000 ES2 K50-600
7/8 22,23 17 0,06 1,47 0,74 0,82 18,80 20,75 1244-L R-16-L M-62 3/8 G1450 ES2 K50-1250
7/8 22,23 18 0,05 1,25 0,74 0,82 18,80 20,75 1244-L R-16-L M-62 3/8 G1450 ES2 K50-1250
1 25,40 8 0,17 4,19 0,66 0,72 16,65 18,30 1242-L R-13-L M-59 3/8 G1000 ES2 K60-400
1 25,40 9 0,15 3,76 0,69 0,76 17,45 19,40 1236-L R-14-L M-61 3/8 G1000 ES2 K60-400
1 25,40 10 0,13 3,40 0,71 0,79 18,10 20,10 1238-L R-15-L M-61 3/8 G1000 ES2 K60-400
1 25,40 11 0,12 3,05 0,74 0,82 18,80 20,75 1244-L R-16-L M-62 3/8 G1000 ES2 K60-400
1 25,40 12 0,11 2,77 0,77 0,84 19,45 21,40 1246-L R-17-L M-62 3/8 G1000 ES2 K60-400
1 25,40 13 0,10 2,41 0,79 0,87 20,05 22,10 1248-L R-18-L M-62 3/8 G1000 ES2 K50-400
1 25,40 14 0,08 2,11 0,81 0,90 20,50 22,80 1250-L R-18-L M-63 3/8 G1000 ES2 K50-400
1 25,40 15 0,07 1,83 0,84 0,94 21,25 23,80 1252-L R-19-L M-63 3/8 G1000 ES2 K50-400
1 25,40 16 0,07 1,65 0,84 0,94 21,25 23,80 1252-L R-19-L M-63 3/8 G1000 ES2 K50-400
1 25,40 17 0,06 1,47 0,86 0,96 21,95 24,50 1256-L R-21-L M-63 3/8 G1000 ES2 K50-600
1 25,40 18 0,05 1,25 0,86 0,96 21,95 24,50 1256-L R-21-L M-63 3/8 G1000 ES2 K50-600
1 25,40 19 0,04 1,07 0,86 0,96 21,95 24,50 1256-L R-21-L M-63 3/8 G1000 ES2 K50-600
1 25,40 20 0,04 0,89 0,86 0,96 21,95 24,50 1256-L R-21-L M-63 3/8 G1000 ES2 K50-600
1 1/8 28,58 8 0,17 4,19 0,78 0,87 19,70 22,20 1254-L R-20-L M-63 3/8 G1000 DU1 K60-400
1 1/8 28,58 9 0,15 3,76 0,81 0,90 20,50 22,80 1250-L R-18-L M-63 3/8 G1000 DU1 K60-400
1 1/8 28,58 10 0,13 3,40 0,84 0,94 21,25 23,80 1252-L R-19-L M-63 3/8 G1000 DU1 K60-400
1 1/8 28,58 11 0,12 3,05 0,86 0,96 21,95 24,50 1256-L R-21-L M-63 3/8 G1000 DU1 K60-400
1 1/8 28,58 12 0,11 2,77 0,88 0,98 22,40 24,90 1258-L R-21-L M-64 1/2 G1000 DU1 K60-400
1 1/8 28,58 13 0,10 2,41 0,91 1,02 23,20 25,80 1260-L R-22-L M-64 1/2 G1000 DU1 K60-400
1 1/8 28,58 14 0,08 2,11 0,93 1,04 23,70 26,50 1262-L R-23-L M-65 1/2 G1000 DU1 K60-400
1 1/8 28,58 15 0,07 1,83 0,96 1,07 24,40 27,20 1264-L R-24-L M-65 1/2 G1000 DU1 K60-400
1 1/8 28,58 16 0,07 1,65 0,96 1,07 24,40 27,20 1264-L R-24-L M-65 1/2 G1000 DU1 K60-400
1 1/8 28,58 17 0,06 1,47 0,99 1,10 25,10 27,90 1268-L R-26-L M-66 1/2 G1000 DU1 K60-400
1 1/8 28,58 18 0,05 1,25 0,99 1,10 25,10 27,90 1268-L R-26-L M-66 1/2 G1000 DU1 K60-400
1 1/4 31,75 8 0,17 4,19 0,90 1,01 22,85 25,60 1266-L R-25-L M-65 1/2 G1000 DU1 K60-400
1 1/4 31,75 9 0,15 3,76 0,93 1,04 23,70 26,50 1262-L R-23-L M-65 1/2 G1000 DU1 K60-400
1 1/4 31,75 10 0,13 3,40 0,96 1,07 24,40 27,20 1264-L R-24-L M-65 1/2 G1000 DU1 K60-400
1 1/4 31,75 11 0,12 3,05 0,99 1,10 25,10 27,90 1268-L R-26-L M-66 1/2 G1000 DU1 K60-400
1 1/4 31,75 12 0,11 2,77 1,01 1,12 25,70 28,50 1270-L R-27-L M-66 1/2 G1000 DU1 K60-400
1 1/4 31,75 13 0,10 2,41 1,04 1,15 26,40 29,20 1272-L R-28-L M-67 1/2 G1000 DU1 K60-400
1 1/4 31,75 14 0,08 2,11 1,06 1,17 26,90 29,70 1274-L R-29-L M-67 1/2 G1000 DU1 K60-400
1 1/4 31,75 15 0,07 1,83 1,09 1,20 27,60 30,40 1276-L R-30-L M-67 1/2 G1000 DU1 K60-400
1 1/4 31,75 16 0,07 1,65 1,09 1,20 27,60 30,40 1276-L R-30-L M-67 1/2 G1000 DU1 K60-400
1 1/4 31,75 17 0,06 1,47 1,11 1,22 28,30 31,00 1280-L R-30-L M-68 1/2 G1000 DU1 K60-400
1 1/4 31,75 18 0,05 1,25 1,11 1,22 28,30 31,00 1280-L R-30-L M-68 1/2 G1000 DU1 K60-400
1 3/8 34,93 8 0,17 4,19 1,03 1,14 26,05 28,85 1278-L R-31-L M-67 1/2 G400 DU1 K60-250
1 3/8 34,93 9 0,15 3,76 1,06 1,17 26,90 29,70 1274-L R-29-L M-67 1/2 G400 DU1 K60-250
1 3/8 34,93 10 0,13 3,40 1,09 1,20 27,60 30,40 1276-L R-30-L M-67 1/2 G400 DU1 K60-250
1 3/8 34,93 11 0,12 3,05 1,11 1,22 28,30 31,00 1280-L R-30-L M-68 1/2 G400 DU1 K60-250
1 3/8 34,93 12 0,11 2,77 1,13 1,24 28,80 31,55 1282-L R-32-L M-68 1/2 G400 DU1 K60-250
1 3/8 34,93 13 0,10 2,41 1,16 1,28 29,45 32,40 1284-L R-33-L M-69 1/2 G400 DU1 K60-400
1 3/8 34,93 14 0,08 2,11 1,18 1,30 29,95 32,90 1286-L R-34-L M-70 1/2 G400 DU1 K60-400
1 3/8 34,93 15 0,07 1,83 1,20 1,32 30,60 33,55 1288-L R-35-L M-70 1/2 G400 DU1 K60-400
1 3/8 34,93 16 0,07 1,65 1,20 1,32 30,60 33,55 1288-L R-35-L M-70 1/2 G400 DU1 K60-400
1 1/2 38,10 8 0,17 4,19 1,15 1,26 29,10 32,00 1290-L R-34-L M-69 1/2 G400 DU1 K60-250
1 1/2 38,10 9 0,15 3,76 1,18 1,30 29,95 32,90 1286-L R-34-L M-70 1/2 G400 DU1 K60-250
1 1/2 38,10 10 0,13 3,40 1,20 1,32 30,60 33,55 1288-L R-35-L M-70 1/2 G400 DU1 K60-250
1 1/2 38,10 11 0,12 3,05 1,23 1,35 31,35 34,30 1292-L R-36-L M-70 1/2 G400 DU1 K60-250
1 1/2 38,10 12 0,11 2,77 1,26 1,37 31,90 34,90 1294-L R-37-L M-70 1/2 G400 DU1 K60-250
1 1/2 38,10 13 0,10 2,41 1,29 1,40 32,65 35,60 1296-L R-37-L M-71 1/2 G400 DU1 K60-400
1 1/2 38,10 14 0,08 2,11 1,29 1,40 32,65 35,60 1296-L R-37-L M-71 1/2 G400 DU1 K60-400
1 1/2 38,10 15 0,07 1,83 1,33 1,45 33,80 36,75 1298-L R-38-L M-71 1/2 G400 DU1 K60-400
1 1/2 38,10 16 0,07 1,65 1,33 1,45 33,80 36,75 1298-L R-38-L M-71 1/2 G400 DU1 K60-400
1 1/2 38,10 17 0,06 1,47 1,33 1,47 33,80 37,40 1300-L R-38-L M-72 1/2 G400 DU1 K60-400
1 1/2 38,10 18 0,05 1,25 1,33 1,47 33,80 37,40 1300-L R-38-L M-72 1/2 G400 DU1 K60-400
1 1/2 38,10 19 0,04 1,07 1,33 1,47 33,80 37,40 1300-L R-38-L M-72 1/2 G400 DU1 K60-400
1 1/2 38,10 20 0,04 0,89 1,33 1,47 33,80 37,40 1300-L R-38-L M-72 1/2 G400 DU1 K60-400
