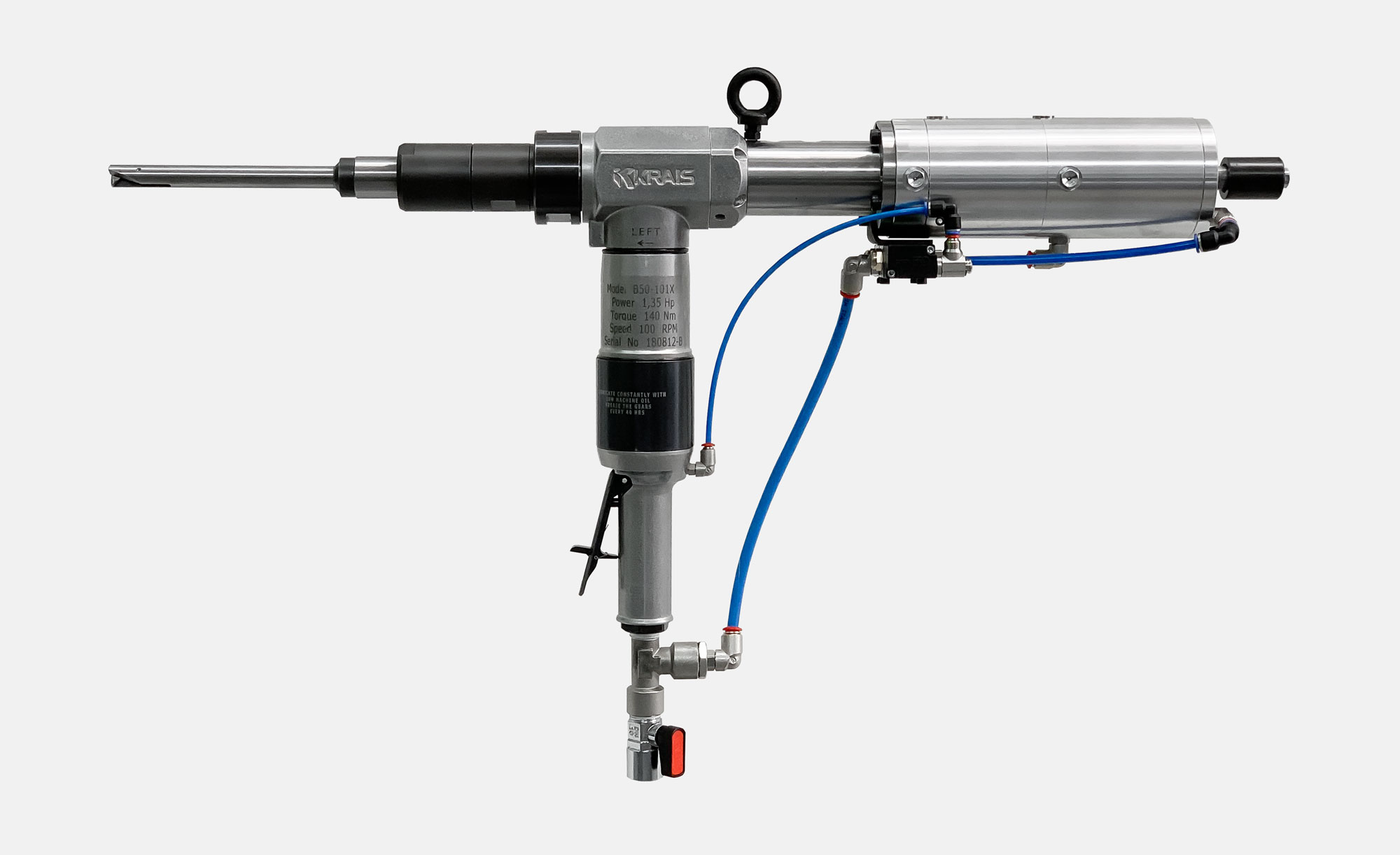

MiniCut 101AF – with automatic feed

Key Features

MiniCut 101AF tube cutting machine with Automatic Feed. Alloy and ferrous tubes up to 1-1/4” with heavy wall up to 10 BWG can be cut quickly, consistently efficiently and effortlessly within 15-40 second depending on diameter and wall thickness. The MiniCut 101AF tool is equipped with pneumatic/hydraulic automatic feed for positive power transmission to the cutting bit.

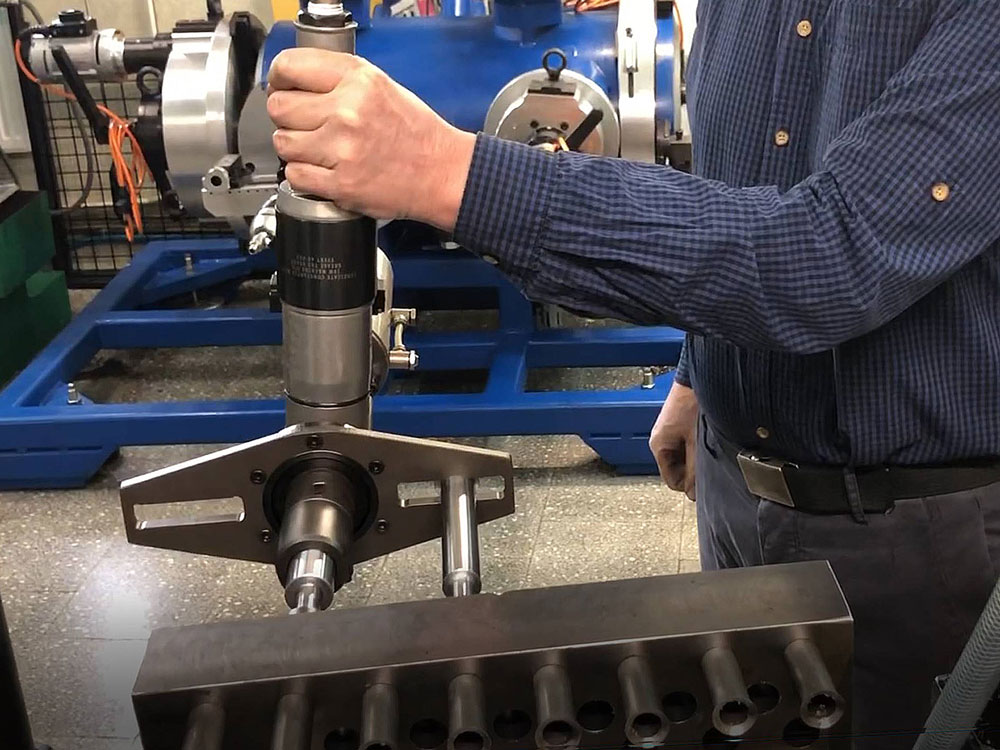

MiniCut 101AF in action

Main technical data

  • Metric
  • Cutting range [inch]
  • Torque
  • Power
  • Free Speed
  • Air Use
  • Dimensions
  • Weight
  • Metric
  • Up to 31,7 mm
  • 140 Nm
  • 1,3 Hp
  • 100 Rpm
  • 1,3 m3/min
  • 62 x 380 x 540 mm
  • 11,5 kg
  • Imperial
  • Up to 1-1/4″ OD
  • 105 Ft.Lbs
  • 1,3 Hp
  • 100 Rpm
  • 55 cfm
  • 2,44″ x 14,96″ x 21,25″
  • 25,35 Lbs

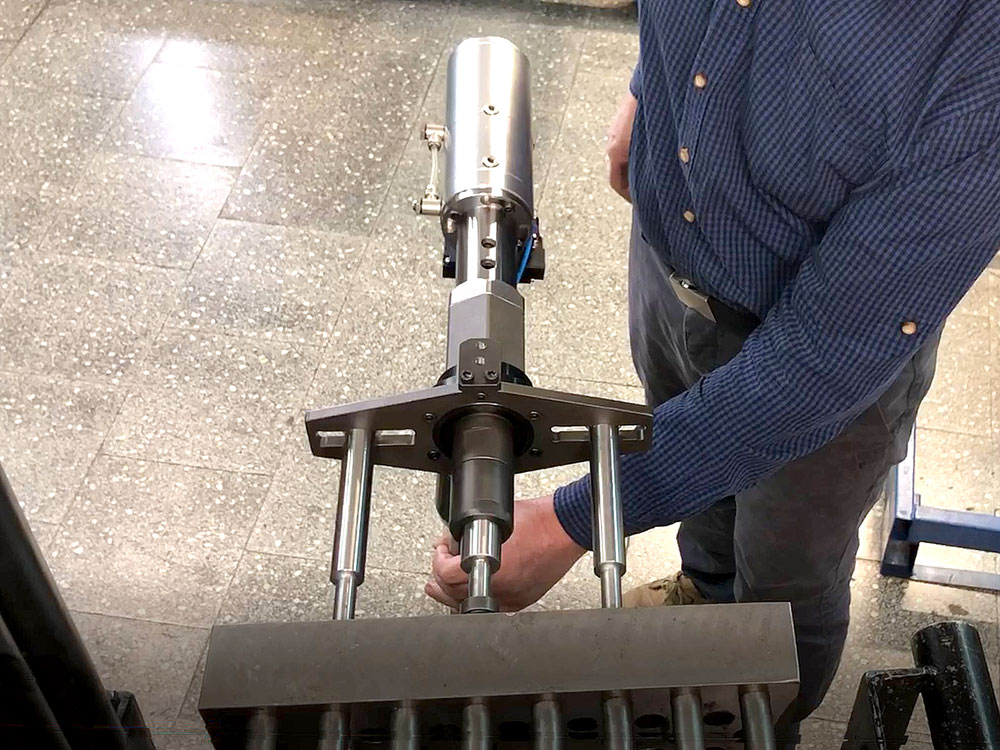

Optional reaction bar

The most convenient version can be delivered with reaction bard with two locking shafts. The reaction bar is universal and allows to precise tool alignment to the tubes pitch. Dim: 250 x 330 x 54 mm / 9,84 x 14,96 x 21,25″; weight: 13,5 kg / 29,76 Lbs
