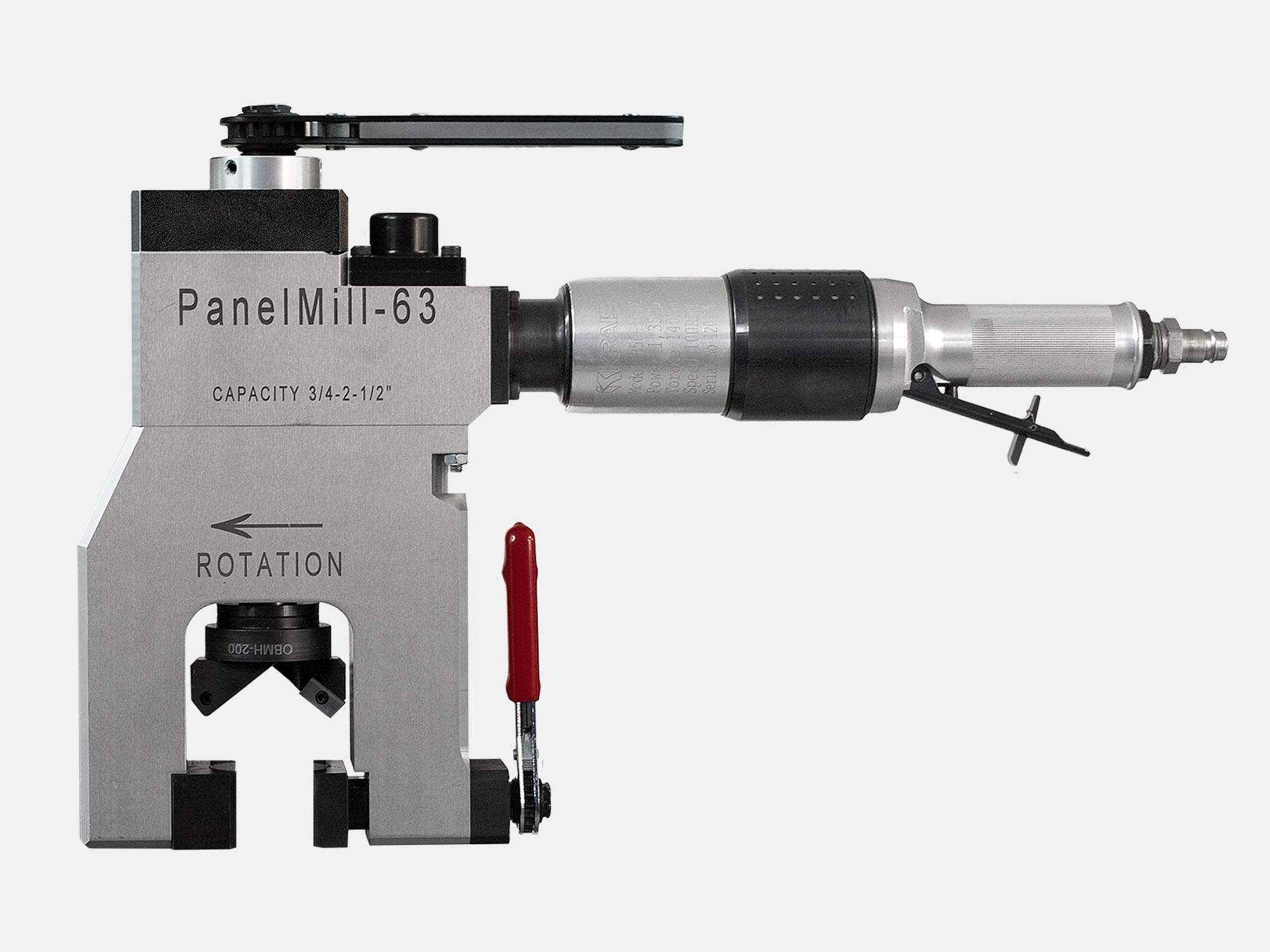

PanelMill
The PanelMill attaches to the tube outside diameter by means of custom or specific clamp type jaws that provide strong clamping action that minimizes chatter and vibration.
Rugged construction allows the tool’s cutting blade to end prep quickly. Several cutter heads are available for tubes with up to 2-1/2” O.D.
Both the clamp and cutter heads are extremely durable and easy to change.
The ratchet feed arm enables the operator to comfortably feed the tool during bevelling or facing. The PanelMill is suitable for small bore heavy wall tubes with a high percentage of chrome, stainless steel, and other exotic alloys. Standard and custom made blades are offered in a wide variety of angles and sizes.
Standard working range
PanelMill 63
| MODEL | APPLICATION RANGE |
| PANELMILL 63 | 19 – 63 mm |
| 0,750 – 2,500” |
PanelMill 100
| MODEL | APPLICATION RANGE |
| PANELMILL 100 | 50 – 102 mm |
| 2 – 4” |
Motor parameters
PanelMill 63
| FEED STROKE | FREE SPEED | TORQUE | ||
| 25 mm | 1,0” | 100 Rpm OPT. 35, 200, 300 | 140 Nm | 105 Ft.Lbs |
| Air use: | 55 cfm | 1,3 m3/ min | Body width: | 1,96” | 50 mm |
| Body height: | 13,1” | 300,0 mm | Body weight: | 22 Lbs | 10 kg |
PanelMill 100
| FEED STROKE | FREE SPEED | TORQUE | ||
| 25 mm | 1,0” | 100 Rpm OPT. 40 | 140 Nm | 105 Ft.Lbs |
| Air use: | 42,4 cfm | 1,2 m3 /min | Body width: | 3,11” | 79,0 mm |
| Body height: | 13,77” | 350,0 mm | Body weight: | 40 Lbs | 18,0 kg |

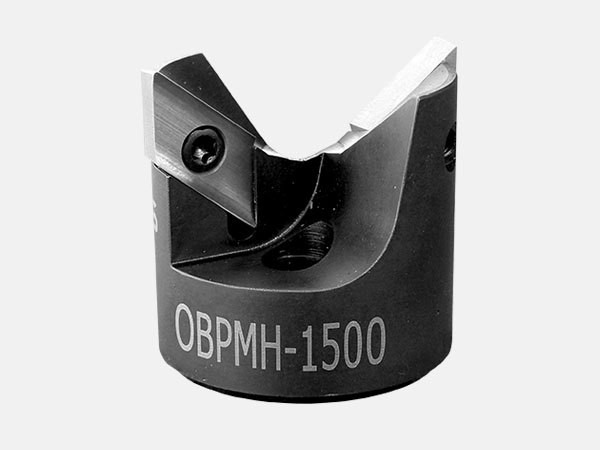

Universal cutter heads

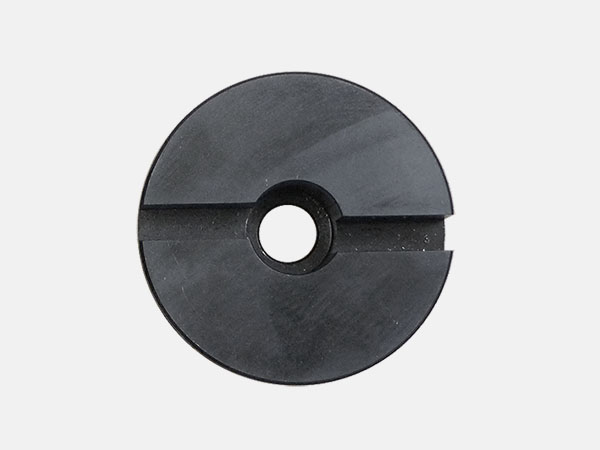

50 MM (1,97”)
Head supplied with PanelMill 63. Designed to fasten wide range of cutting inserts.

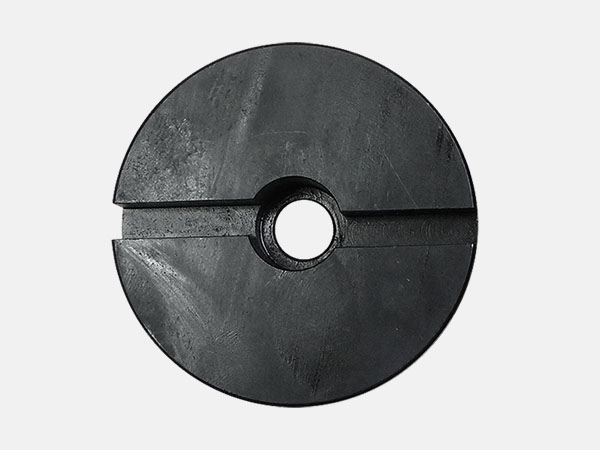

63 MM (2,48”)
Head supplied with PanelMill 100. Designed to fasten wide range of cutting inserts.
Optional heads

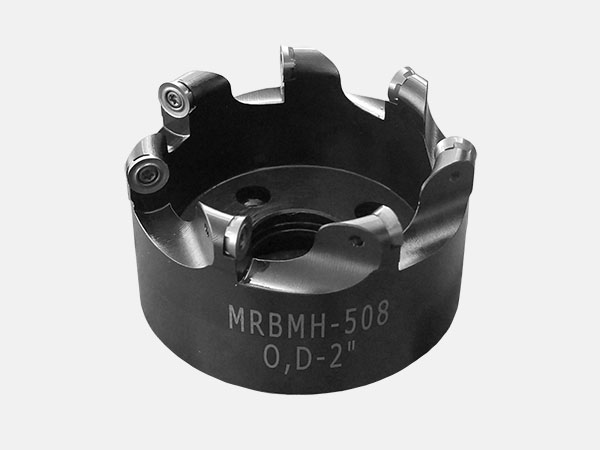

PMRBMH
Head for membrane and overlay removal. Efficiently remove material between boiler tubes.

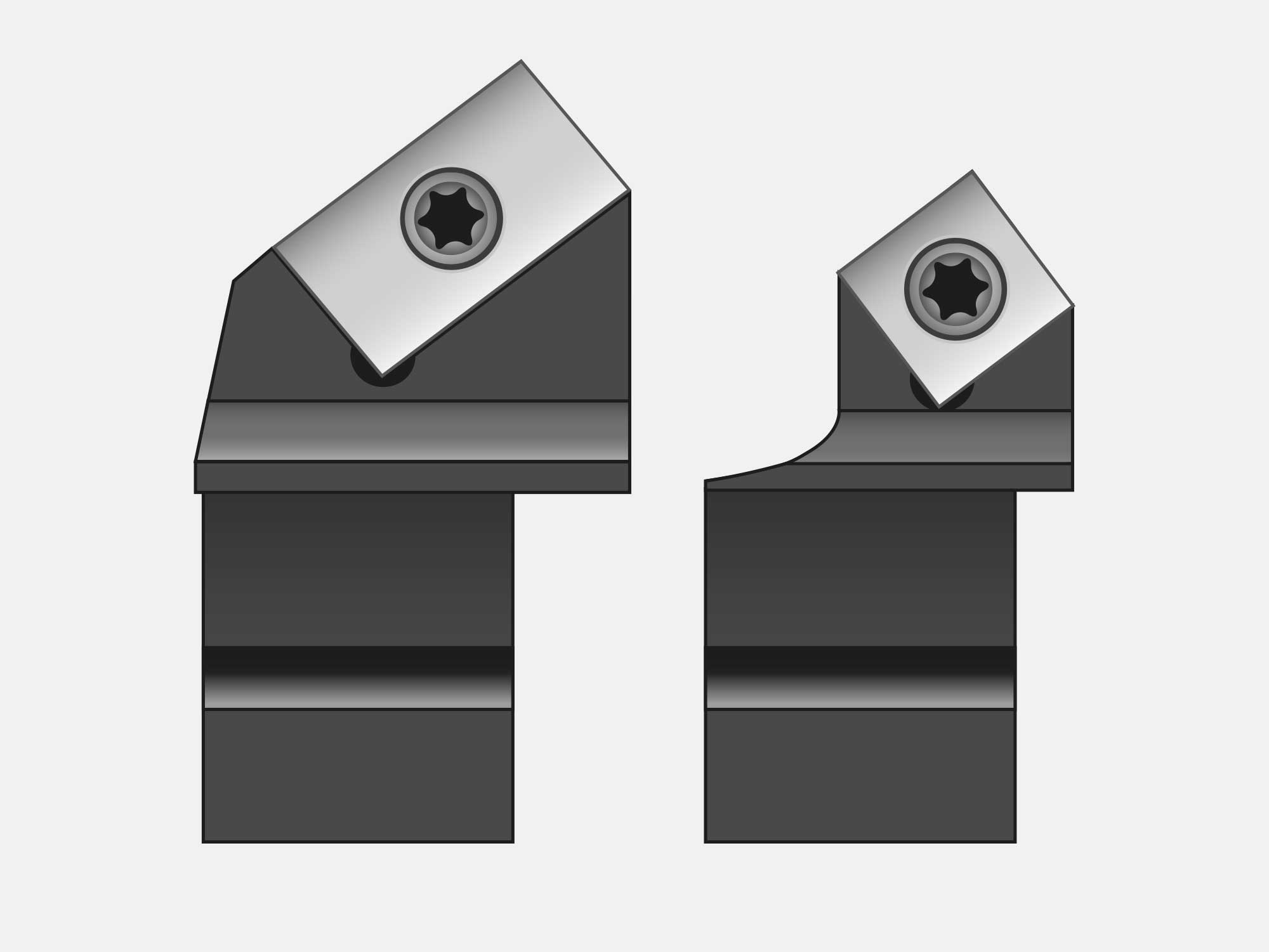

BIT & HOLDERS
Universal cutter heads can hold a wide range of holders, with a bunch types of bits.
Other options

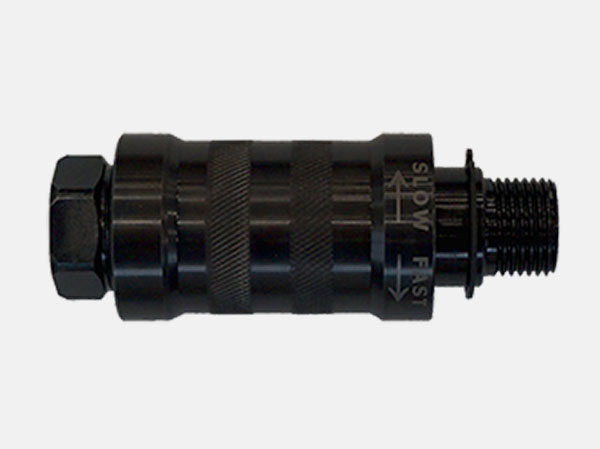

SPEED ADJUSTMENT VALVE SAV-500
The solution for all pneumatic drove beveling machines. Allows adjusting cutting speed to suit to the machined tube diameter.
Jaws for PanelMill
Jaws for panelmill
| JAWS NO. | TUBE OD | |
| [MM] | [INCH] | |
| 300 PM#2 | 19,05 | 0,750 |
| 301 PM#2 | 20,00 | 0,787 |
| 304 PM#2 | 22,20 | 0,874 |
| 308 PM#2 | 25,40 | 1,000 |
| 309 PM#2 | 25,00 | 0,984 |
| 312 PM#2 | 28,80 | 1,134 |
| 313 PM#2 | 30,00 | 1,181 |
| 314 PM#2 | 31,70 | 1,248 |
| 318 PM#2 | 34,90 | 1,374 |
| 322 PM#2 | 38,10 | 1,500 |
| 326 PM#2 | 44,40 | 1,748 |
| 330 PM#2 | 50,80 | 2,000 |
| 331 PM#2 | 51,00 | 2,008 |
| 334 PM#2 | 57,10 | 2,248 |
| 338 PM#2 | 60,30 | 2,374 |
| 342 PM#2 | 63,50 | 2,500 |
| 346 PM#2 | 76,20 | 3,000 |
