Нутрометр

Key Features

Tube Hole Gages utilize a precision three-point contact, self-centring system, for measuring both Tube and Tube sheet ID. Our Reversible Dial Plate, allows the user to measure in both inch/decimal and metric units. Our standard adjustable depth is 4” or 8”(101 or 203 mm) dependent on model. We offer additional 8” (203 mm) reach extensions to increase the capacity of these tools for Fin Fan and similar units. All gages are furnished with both setting ring and carrying case.

Parameters

Size* ID Range Tool Number Reach Setting Ring Mandrel Extension Body Extension
min max
[inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm]
3/8 9,53 0,290 0,350 7,37 8,89 K200-95 4 101,6 SR-3/8 K200-95-ME K200-95-BE
1/2 12,70 0,350 0,450 8,89 11,43 K200-127 4 101,6 SR-1/2 K200-127-ME K200-127-BE
5/8 15,88 0,440 0,560 11,18 14,22 K200-158 4 101,6 SR-5/8 K200-158-ME K200-158-BE
3/4 19,05 0,550 0,715 13,97 18,16 K200-190 8 203,2 SR-3/4 K200-190-ME K200-190-BE
7/8 22,23 0,675 0,840 17,15 21,34 K200-222 8 203,2 SR-7/8 K2000-222-ME K200-222-BE
1 25,40 0,800 0,965 20,32 24,51 K200-254 8 203,2 SR-1 K200-254-ME K200-254-BE
1 1/4 31,75 0,950 1,170 24,13 29,72 K200-317 8 203,2 SR-1-1/4 K200-317-ME K200-317-BE
1 3/8 34,93 1,085 1,295 27,56 32,89 K200-350 8 203,2 SR-1-3/8 K200-350-ME K200-350-BE
1 1/2 38,10 1,240 1,450 31,50 36,83 K200-381 8 203,2 SR-1-1/2 K200-381-ME K200-381-BE
1 3/4 44,45 1,476 1,685 37,49 42,80 K200-444 8 203,2 SR-1-3/4 K200-444-ME K200-444-BE
2 50,80 1,700 1,910 43,18 48,51 K200-508 8 203,2 SR-2 K200-508-ME K200-508-BE
2 1/4 57,15 1,948 2,16 49,479 54,86 K200-571 8 203,2 SR-1-1/4 K200-571-ME K200-571-BE
2 1/2 63,50 2,200 2,41 55,880 61,21 K200-635 8 203,2 SR-2-1/2 K200-635-ME K200-635-BE
3 76,20 2,660 2,87 67,564 72,90 K200-762 8 203,2 SR-3 K200-762-ME K200-762-BE

* other sizes on request

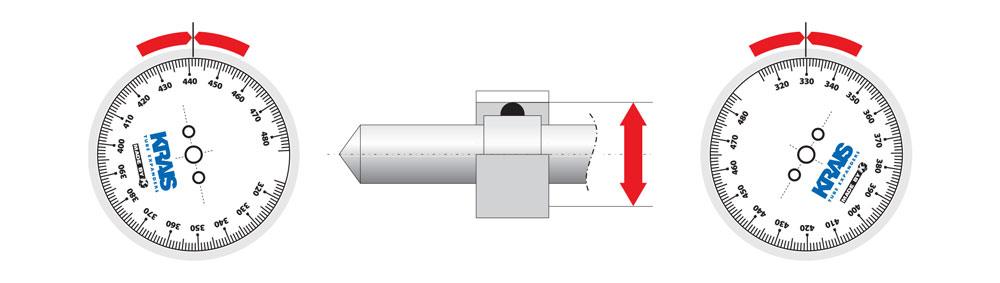

Free gauge adjustment

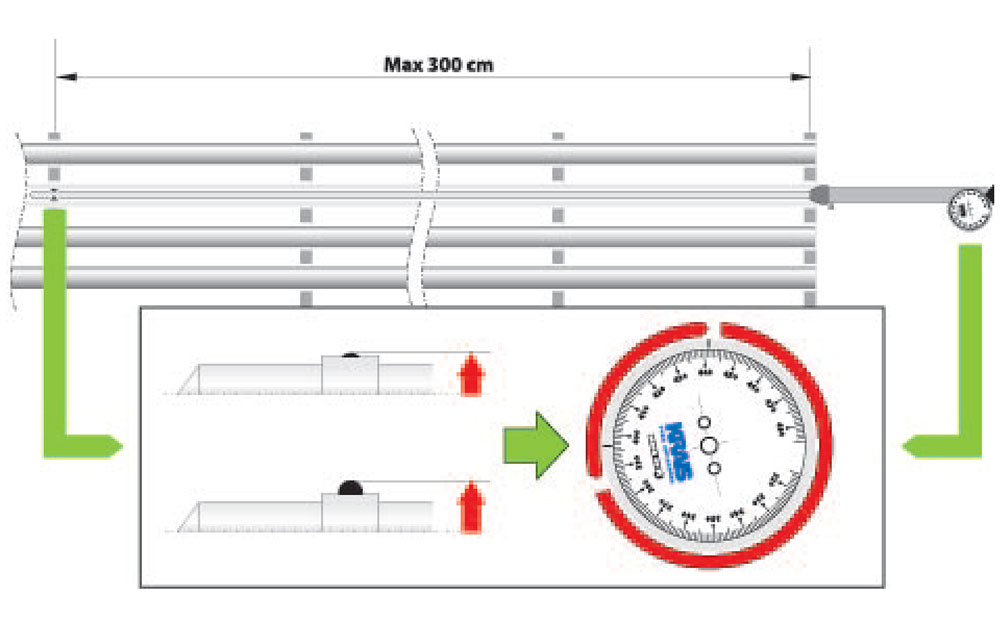

Long version (up to 3m)
