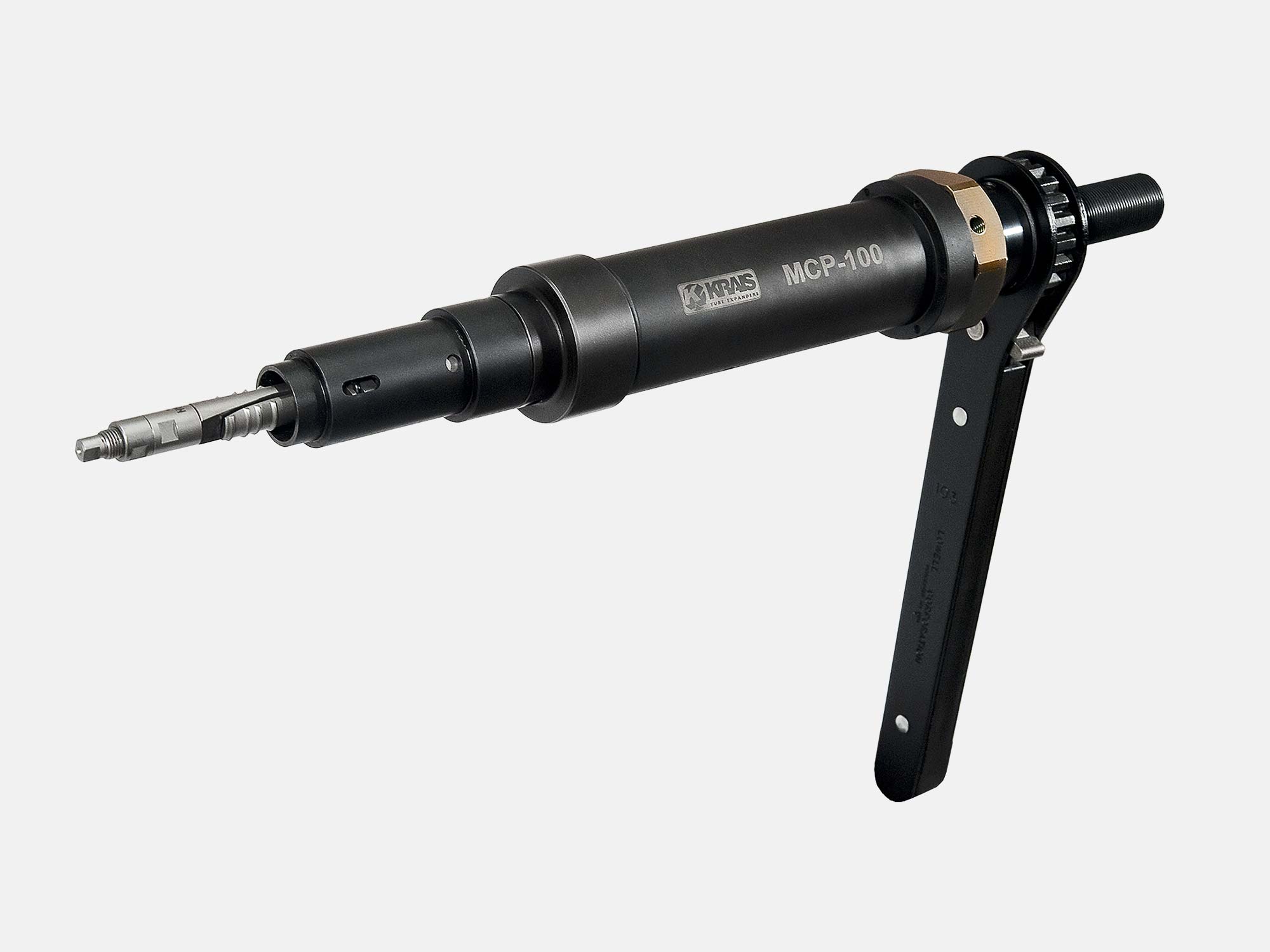

Tube Puller MCP-100
Key Features
MCP-100 manual collet type tube puller for quick and easy tube stub removal from heat exchanges, condensers, chillers and other tubular pressure vessels. Manually operated develop up to 10 Tons pulling force (depend on the arm length of the ratchet wrench), with 4“ stroke. Can be used for tubes form 5/8” (16mm ) to 1” (25 mm) O.D. Recommended for smaller amount of tube to be pulled.
Parameters
Tube OD: 15,8 мм
| TUBE GAUGE | GRIPPER SET | DRAW MANDREL | NOSE PIECE | LOCK NUT | ADJUST NUT | JAW O’RING | C O’RING |
| 16-17 | CP-1000-01-58-16 | CP-10S-03-58 | CP-10S-06A-58 | CP-10-LN-58 | CP-10-AN-58 | CP-2220 | CP-1724 |
| 18-19 | CP-1000-01-58-18 | CP-10S-03-58 | CP-10S-06A-58 | CP-10-LN-58 | CP-10-AN-58 | CP-2220 | CP-1724 |
| 20-21 | CP-1000-01-58-20 | CP-10S-03-58 | CP-10S-06A-58 | CP-10-LN-58 | CP-10-AN-58 | CP-2220 | CP-1724 |
| 22-23 | CP-1000-01-58-22 | CP-10S-03-58 | CP-10S-06A-58 | CP-10-LN-58 | CP-10-AN-58 | CP-2220 | CP-1724 |
Tube OD: 19 мм
| TUBE GAUGE | GRIPPER SET | DRAW MANDREL | NOSE PIECE | LOCK NUT | ADJUST NUT | JAW O’RING | C O’RING |
| 16-17 | CP-1000-01-34-16 | CP-10S-03-34 | CP-10S-06A-34 | CP-10-LN-34 | CP-10-AN-34 | CP-2220 | CP-1724 |
| 18-19 | CP-1000-01-34-18 | CP-10S-03-34 | CP-10S-06A-34 | CP-10-LN-34 | CP-10-AN-34 | CP-2220 | CP-1724 |
| 20-21 | CP-1000-01-34-20 | CP-10S-03-34 | CP-10S-06A-34 | CP-10-LN-34 | CP-10-AN-34 | CP-2220 | CP-1724 |
| 22-23 | CP-1000-01-34-22 | CP-10S-03-34 | CP-10S-06A-34 | CP-10-LN-34 | CP-10-AN-34 | CP-2220 | CP-1724 |
Tube OD: 22,2 мм
| TUBE GAUGE | GRIPPER SET | DRAW MANDREL | NOSE PIECE | LOCK NUT | ADJUST NUT | JAW O’RING | C O’RING |
| 16-17 | CP-1000-01-78-16 | CP-10S-03-78 | CP-10S-06A-78 | CP-10-LN-78 | CP-10-AN-78 | CP-2220 | CP-1724 |
| 18-19 | CP-1000-01-78-18 | CP-10S-03-78 | CP-10S-06A-78 | CP-10-LN-78 | CP-10-AN-78 | CP-2220 | CP-1724 |
| 20-21 | CP-1000-01-78-20 | CP-10S-03-78 | CP-10S-06A-78 | CP-10-LN-78 | CP-10-AN-78 | CP-2220 | CP-1724 |
| 22-23 | CP-1000-01-78-22 | CP-10S-03-78 | CP-10S-06A-78 | CP-10-LN-78 | CP-10-AN-78 | CP-2220 | CP-1724 |
Tube OD: 25,4 мм
| TUBE GAUGE | GRIPPER SET | DRAW MANDREL | NOSE PIECE | LOCK NUT | ADJUST NUT | JAW O’RING | C O’RING |
| 16-17 | CP-1000-01-1-16 | CP-10S-03-1 | CP-10S-06A-1 | CP-10-LN-1 | CP-10-AN-1 | CP-2220 | CP-1724 |
| 18-19 | CP-1000-01-1-18 | CP-10S-03-1 | CP-10S-06A-1 | CP-10-LN-1 | CP-10-AN-1 | CP-2220 | CP-1724 |
| 20-21 | CP-1000-01-1-20 | CP-10S-03-1 | CP-10S-06A-1 | CP-10-LN-1 | CP-10-AN-1 | CP-2220 | CP-1724 |
| 22-23 | CP-1000-01-1-22 | CP-10S-03-1 | CP-10S-06A-1 | CP-10-LN-1 | CP-10-AN-1 | CP-2220 | CP-1724 |
