The first and only outside locking beveling machine with positive feed

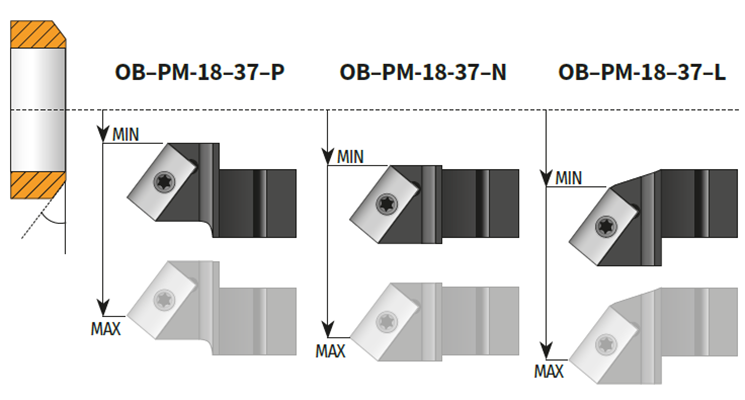

Outside beveling holders

Cutting edge length: 12 mm, standard angle: 37,5° (others on request)

obh1

Holders

HOLDER NO.	BIT	HEAD	RANGE MM		RANGE INCH		DEGREE *
HOLDER NO.	BIT	HEAD	MIN	MAX	MIN	MAX	DEGREE *
OB-18-37-P	CDI	64	0	47	0	1,85	30; 37,5
OB-18-37-P	CDI	99	0	85	0	3,346/td>	30; 37,5
OB-18-37-N	CDI	64	11	56,5	0,433	2,224	30; 37,5
OB-18-37-N	CDI	99	11	95	0,433	3,74	30; 37,5
OB-18-37-L	CDI	64	20	65,5	0,787	2,579	30; 37,5
OB-18-37-L	CDI	99	20,00/td>	104	0,787	4,094	30; 37,5

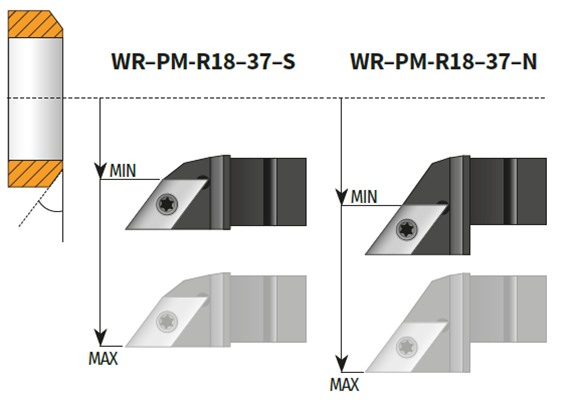

Outside beveling holders

Cutting edge length: 10 mm, standard angle: 37,5° (others on request)

obh2

Holders

HOLDER NO.	BIT	HEAD	RANGE MM		RANGE INCH		DEGREE *
HOLDER NO.	BIT	HEAD	MIN	MAX	MIN	MAX	DEGREE *
WR-PM-R18-37-S	WRIL	64	22,00	66,00	0,866	2,598	30; 37,5
WR-PM-R18-37-N	WRIL	64	36,00	80,00	1,417	3,150	30; 37,5
WR-PM-R18-37-N	WRIL	99	36,00	116,00	1,417	4,567	30; 37,5

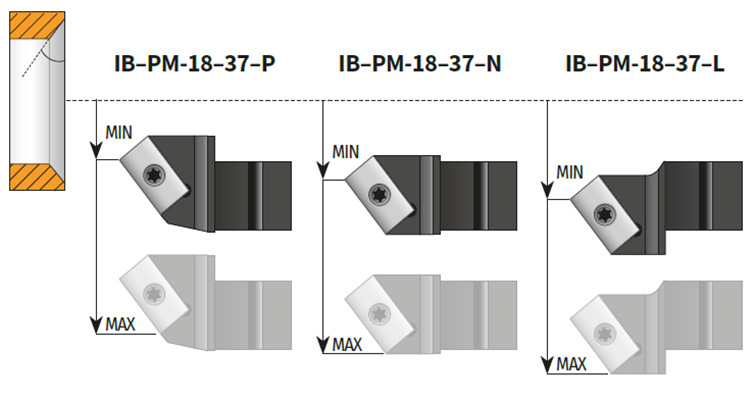

Inside beveling holders

Cutting edge length: 12 mm, standard angle: 37,5° (others on request)

Holders

HOLDER NO.	BIT	HEAD	RANGE MM		RANGE INCH		DEGREE *
HOLDER NO.	BIT	HEAD	MIN	MAX	MIN	MAX	DEGREE *
IB-PM-18-37-P	WRIL	64	10,00	56,00	0,394	2,205	30; 37,5
IB-PM-18-37-P	WRIL	99	10,00	95,00	0,394	3,740	30; 37,5
IB-PM-18-37-N	WRIL	64	20,00	65,00	0,787	2,559	30; 37,5
IB-PM-18-37-N	WRIL	99	20,00	104,00	0,787	4,094	30; 37,5
IB-PM-18-37-L	WRIL	64	35,00	79,00	1,378	3,110	30; 37,5
IB-PM-18-37-L	WRIL	99	35,00	115,00	1,378	4,528	30; 37,5

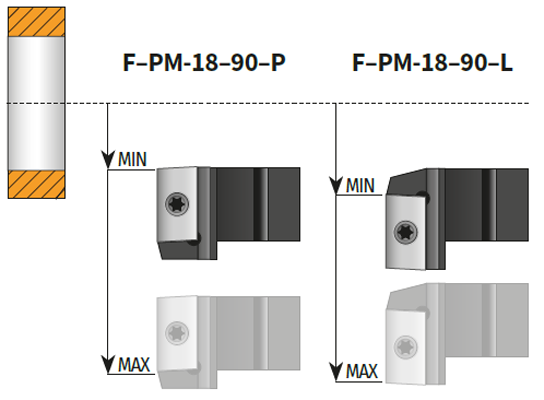

Facing Holders

Cutting edge length: 15 mm, standard angle: 90,0°

Holders

HOLDER NO.	BIT	HEAD	RANGE MM		RANGE INCH		DEGREE *
HOLDER NO.	BIT	HEAD	MIN	MAX	MIN	MAX	DEGREE *
F-PM-18-90-P	WRIL	64	0,00	53,00	0,000	2,087	90
F-PM-18-90-P	WRIL	99	0,00	88,00	0,000	3,465	90
F-PM-18-90-L	WRIL	64	20,00	80,00	0,787	3,150	90
F-PM-18-90-L	WRIL	99	20,00	116,00	0,787	4,567	90
